Brass offers excellent machinability and corrosion resistance for precision components across audio, medical, and industrial applications. However, unfinished brass develops natural tarnish over time, creating uncertainty about whether surface treatment is necessary.
Most brass parts don’t require finishing to prevent tarnish unless appearance is critical or parts face harsh environments. Raw brass tarnish is purely cosmetic and doesn’t affect mechanical properties or dimensional accuracy.
Learn when brass finishing is essential, compare coating options, and get guidance on specifying treatments that balance performance with cost-efficiency.
Table of Contents
Does raw brass tarnish over time?

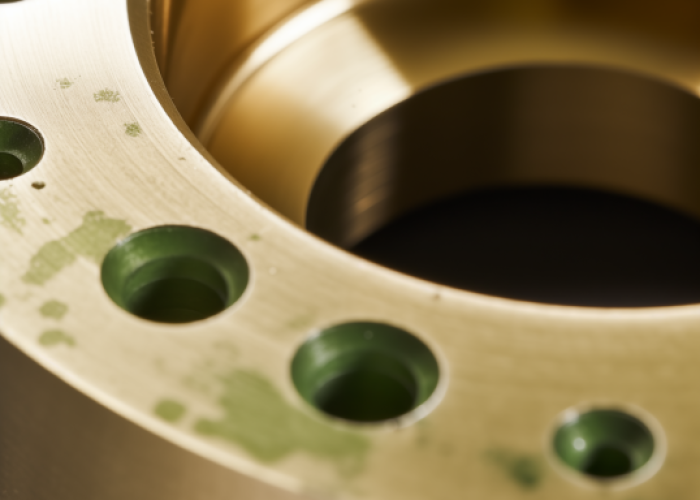

Yes, raw brass naturally tarnishes within weeks to months when exposed to air and moisture. The copper content in brass reacts with oxygen to form a brownish or greenish patina, starting with subtle dulling and progressing to noticeable discoloration.
Visual Timeline by Application:
- High-touch surfaces (handles, controls): Fingerprint marks within 1-2 weeks → noticeable brown patches by 6-8 weeks
- Protected indoor parts (enclosures, brackets): Slight color shift at 2-3 months → obvious tarnishing by 6-12 months
- Outdoor/humid conditions: Visible changes within days → heavy patina in 4-8 weeks
If your brass parts fall into the “high-touch” or “customer-visible” categories above, surface treatment is typically worth the investment. Protected internal components can often remain raw without affecting function or perceived quality.

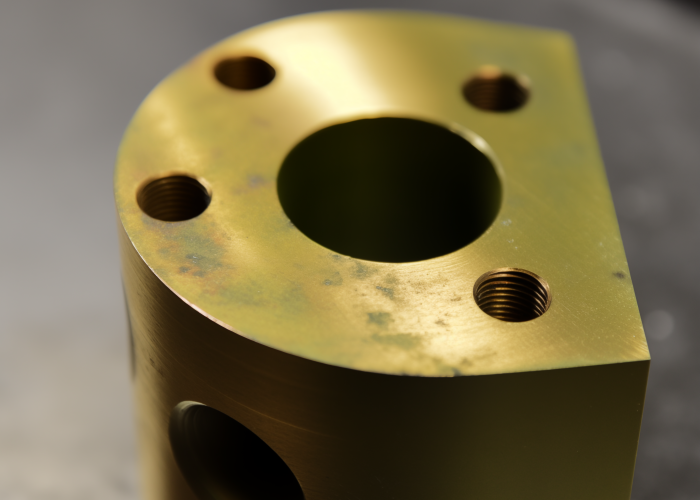

The tarnishing creates uneven coloring patterns—contacted areas darken faster than protected surfaces, leading to blotchy appearance that customers interpret as poor quality. From machining audio equipment faceplates, we’ve seen how quickly demo units develop worn-looking patches that hurt brand perception.
Design Takeaway: Use the timeline above to evaluate whether raw brass fits your product’s maintenance expectations and customer interaction patterns. If tarnishing occurs faster than your target refresh cycle, specify surface treatment during initial design.
Will brass tarnish affect mechanical performance or just appearance?
Brass tarnish is purely cosmetic and doesn’t compromise mechanical properties, dimensional accuracy, or structural performance. The oxidation layer actually provides corrosion protection, similar to how aluminum naturally forms a protective oxide coating.
Testing shows that tarnished brass maintains identical tensile strength, hardness, and fatigue resistance compared to bright-finished parts. Thread engagement, bearing surfaces, and precision fits operate normally regardless of surface oxidation. The patina layer measures only 0.0001-0.0005 mm thick—well within standard machining tolerances and insignificant for most mechanical applications.
However, tarnish can impact specific functional requirements. Electrical conductivity drops by 10-15% as oxidation interferes with metal-to-metal contact in switch assemblies or grounding applications. For medical devices, the darkened surface may complicate visual inspection protocols or suggest contamination to end users.
From our experience with brass components in audio equipment, the mechanical performance remains unchanged while customer perception suffers significantly. Tarnished control knobs function identically to new ones, but users associate the discoloration with equipment aging or poor maintenance.
If your part’s function depends on appearance, electrical contact, or user confidence, treat tarnish as a performance issue requiring surface treatment. For internal structural components, raw brass performs reliably without finishing.
Design Takeaway: Focus surface treatment budget on customer-facing or electrically critical areas while leaving internal brackets, spacers, and structural elements raw to control costs.
What surface treatments prevent brass from tarnishing?
Clear lacquer, electroplating, and conversion coatings effectively prevent brass tarnish by creating a barrier between the brass surface and oxygen. Each treatment uses different mechanisms—organic coatings seal the surface while metallic plating provides sacrificial protection.
Available Treatment Categories:
Organic Coatings: Clear lacquer and polyurethane form transparent films that maintain brass appearance while blocking air contact. These coatings can be applied via spray, dip, or electrostatic methods depending on part geometry.
Electroplating: Nickel, chrome, or other metals are electrically deposited onto the brass surface, creating a durable metallic barrier. This process completely changes the part’s appearance but offers superior protection and wear resistance.
Conversion Coatings: Chemical treatments that convert the brass surface into a protective compound while maintaining electrical conductivity better than organic films. These specialized processes work well for electrical applications.
Appearance Impact: Organic coatings preserve the golden brass look, while electroplating creates silver, chrome, or other metallic finishes. Conversion coatings typically produce slight color shifts but maintain the underlying brass character.
All treatments require proper surface preparation—cleaning, degreasing, and sometimes etching—to ensure adhesion and uniform coverage across complex geometries.
Design Takeaway: Select treatment type based on whether maintaining brass appearance is critical for your application. Organic coatings preserve the original look while metallic plating offers maximum protection with appearance changes.
What's the Cheapest Way to Keep Brass Looking New?
Clear lacquer coating is the most cost-effective brass protection, typically adding $0.50-$2.00 per part depending on size and complexity. This organic coating maintains the golden brass appearance while providing 2-5 years of indoor tarnish protection.
Clear lacquer costs significantly less than electroplating alternatives—nickel plating runs $3.00-$8.00 per part while chrome plating reaches $5.00-$15.00 per part. For low-volume prototypes, spray-applied clear coat offers the lowest entry cost with no minimum order requirements.
When Cheap is Good Enough:
- Product lifespan under 3 years: Lacquer typically outlasts the product lifecycle
- Light contact (less than 10 touches per day): Lacquer handles occasional user interaction
- Indoor-only environments: No UV or weather exposure to accelerate coating breakdown
Risk Assessment: If lacquer fails, you get gradual tarnishing—not catastrophic failure. The worst outcome is customer perception of poor quality, not functional problems. For prototypes or short-production runs, you can start with lacquer and upgrade to plating in future versions if customer feedback indicates appearance issues.
From our experience with audio equipment manufacturers, clear lacquer on brass faceplates delivers acceptable appearance retention for the 3-5 year product lifecycle while keeping finishing costs under 5% of total part cost.
Design Takeaway: Use lacquer when your risk tolerance allows some appearance degradation over time. Upgrade to plating when brand image or customer expectations require pristine appearance throughout the product’s life.
Which Brass Finish Works Best for High-Touch Parts?
Nickel plating performs best for high-touch brass parts, offering superior scratch resistance and wear durability compared to organic coatings. While it changes the appearance from gold to silver, nickel plating withstands repeated handling without showing fingerprints or wear patterns.
High-Touch Thresholds:
- Heavy use (50+ touches/day): Audio control knobs, medical device interfaces—requires nickel or chrome plating
- Moderate use (10-50 touches/day): Door handles, equipment controls—nickel plating recommended
- Light use (under 10 touches/day): Decorative trim, occasional-use hardware—lacquer may suffice
Clear lacquer fails within weeks on heavily-used surfaces, showing scratches and fingerprint oils that create a worn appearance. Nickel’s semi-matte surface hides minor scratches while maintaining professional appearance under heavy use. Chrome offers maximum durability but costs more and shows water spots.
Consequences of Under-Treatment: Lacquered high-touch parts develop visible wear patterns within 1-3 months, leading to customer complaints about build quality. Over-treatment wastes budget but doesn’t create functional problems—just higher initial costs.
From machining brass components for medical equipment, we’ve seen how quickly lacquered surfaces degrade when touched 100+ times daily during clinical use.
Design Takeaway: Count expected daily touches to select treatment. When in doubt, nickel plating provides insurance against appearance complaints with manageable cost impact.
What Brass Coating Lasts Longest Without Maintenance?
Chrome plating offers the longest maintenance-free lifespan for brass parts, typically lasting 15-25 years in indoor environments and 10-15 years outdoors. The hard chromium surface resists scratching, chemical attack, and wear better than any other brass finishing option.
When Chrome’s Longevity Pays Off:
- Permanent installations: Architectural hardware, fixtures with difficult replacement access
- High-value products: Equipment with 10+ year warranties where coating failure creates service costs
- Outdoor applications: Signage, marine hardware exposed to weather and UV
- Avoid chrome for: Prototypes, short-production runs, or products with <5 year expected life
ROI Reality Check: Chrome costs 2-3x more than nickel initially but eliminates reapplication expenses. For a $100 brass part, chrome adds $10-15 vs nickel’s $3-5, but nickel may need replacement in 8-10 years while chrome lasts 20+ years. The math works when replacement labor exceeds the initial premium.
“Maintenance-free” means no recoating required, but chrome still needs periodic cleaning to remove water spots and maintain appearance—especially on mirror finishes. The coating itself won’t fail, but surface contamination affects visual quality.
From our experience with architectural brass hardware, chrome-plated components in high-traffic commercial buildings maintain structural integrity for decades with only routine cleaning, while lacquered parts require refinishing every 3-5 years at $50-100 per part.
Design Takeaway: Justify chrome’s premium when replacement costs exceed initial investment or when coating failure creates warranty liability. For cost-sensitive or short-term applications, nickel provides adequate longevity at lower risk.
How does surface finish affect tolerances on threaded or mating features?
Surface treatments add 0.0001-0.005 mm thickness depending on the coating type, which can interfere with tight-fitting threads, press-fits, or precision mating surfaces. Critical dimensions require coating allowances during initial machining to maintain proper fit after finishing.
How to Specify Coating Allowances:
Drawing Callouts: Add notes like “Machine thread 0.01mm undersize for nickel plating” or “Mask bearing surface – no coating.” Include coating thickness specifications: “Nickel plate 0.005-0.015mm thick per AMS-QQ-N-290.”
Communication with Machinists: During quoting, specify which features need coating exclusion and which need pre-machining adjustment. Ask suppliers to confirm they understand coating thickness impact on critical dimensions before starting production.
Common Overlooked Features: O-ring grooves, bearing races, threaded holes, press-fit pins, and sliding surfaces. These precision features often get coated accidentally, causing assembly problems that require expensive rework.
Troubleshooting Coating Problems: If coated threads won’t assemble, don’t force them—chase threads with appropriate tap to remove coating buildup. For press-fits that are too tight, coating can be selectively removed with abrasives, but this compromises corrosion protection.
From machining precision brass fittings for medical devices, we’ve learned that a clear coating exclusion plan during design prevents 90% of tolerance-related coating issues.
Design Takeaway: Mark coating exclusion zones on drawings before quoting. Include specific notes like “Mask threads M6x1.0” and “Machine ID 0.01mm undersize for plating.” Discuss critical features with your machinist during design review to avoid costly surprises.
Conclusion
Raw brass performs well functionally without coating, but visible tarnishing occurs within months depending on handling frequency. Clear lacquer offers cost-effective protection for indoor applications, while electroplating suits high-wear or appearance-critical parts. Consider coating thickness impact on tolerances early in design. Contact us to explore brass manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Fingerprints become visible on raw brass within 24-48 hours of handling, creating dark spots that worsen with repeated contact. Clear lacquer prevents this issue by providing a barrier between skin oils and the brass surface.
Yes, especially for precision assemblies. Include coating type and thickness range (e.g., “Nickel plate 0.005-0.015mm per ASTM B689”) to ensure suppliers account for dimensional changes during manufacturing and quality control.
Yes, selective coating is common for parts with both functional and decorative areas. For example, you can mask electrical contact points while plating visible surfaces, or apply lacquer to most areas while leaving threaded connections raw. This approach optimizes cost while meeting specific performance requirements for different part zones.
Over-specification increases part cost without functional benefit but doesn’t create performance problems. The main downside is budget impact—spending 3x more on chrome plating for a 2-year product lifecycle wastes money that could improve other design aspects.
Proper surface treatments like lacquer or plating completely prevent green patina formation by blocking moisture and oxygen contact. Raw brass exposed to weather will develop green copper carbonate within 6-12 months depending on climate conditions.
Yes, but post-production coating is more expensive and may affect dimensional tolerances. Pre-planning coating during initial design allows for proper surface preparation and dimensional compensation, reducing costs and ensuring better adhesion.
