In product development, selecting the right surface finish can make or break your design. While anodizing has long been a go-to choice, modern manufacturing offers several compelling alternatives that might better suit your project’s requirements for cost, durability, and aesthetic appeal.
The main alternatives to anodizing are powder coating, Alodine chemical film, electroplating, PVDF coating, mechanical finishing, and bright dip finish. Each option offers unique benefits in terms of cost, durability, and appearance, with selection depending on specific application requirements.
Let’s explore each alternative in detail to help you make an informed decision for your next product development project, including their specific benefits, cost implications, and ideal use cases.
Table of Contents
1 Powder Coating

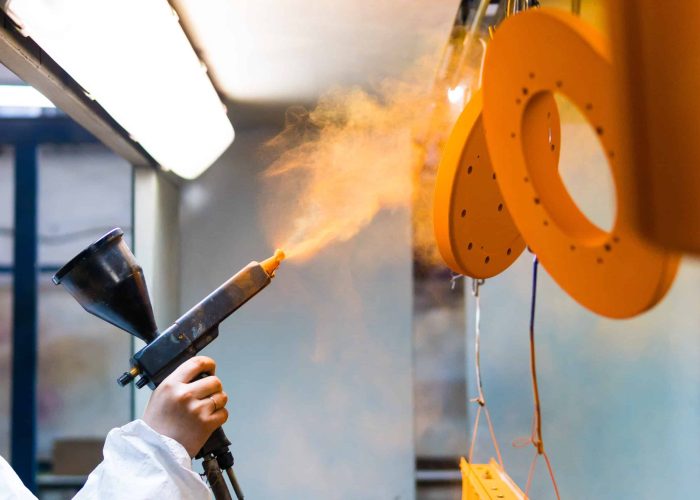

Powder coating is a dry finishing process that applies a free-flowing powder to aluminum surfaces, which is then melted and cured under heat to create a durable finish. Unlike liquid paint or anodizing, the powder is electrostatically charged during application, ensuring even coverage and minimal waste.
Why Consider Powder Coating Over Anodizing
The shift from anodizing to powder coating represents a strategic choice for many product developers. While anodizing creates a protective oxide layer that becomes part of the metal surface, powder coating provides a separate protective layer with distinct advantages in certain applications.
Let’s compare these finishing methods across key performance metrics:
| Performance Factor | Powder Coating | Anodizing | Advantage |
|---|---|---|---|
| Color Options | Extensive range, including custom colors | Limited to dyes, primarily earth tones | Powder Coating |
| Corrosion Resistance | Good to Excellent | Excellent | Tie |
| Cost (Large Batches) | $2-4 per sq ft | $4-8 per sq ft | Powder Coating |
| Environmental Impact | No VOCs, recyclable overspray | Produces acid waste | Powder Coating |
| Thickness Control | 2-8 mils typical | 0.1-1.0 mils | Anodizing |
Recent case studies in manufacturing environments show powder coating delivering significant advantages:
Manufacturing Example: A medical device manufacturer switched from anodizing to powder coating for their aluminum equipment housings, reporting:
- 40% reduction in finishing costs
- 30% faster production time
- Zero rejection rate for color matching
- 25% improvement in impact resistance
When to Choose Powder Coating: Consider powder coating when your project prioritizes:
- Cost efficiency in large production runs
- Specific color requirements, especially bright or custom colors
- Environmental compliance
- Impact and chemical resistance
However, stick with anodizing if you need:
- Extremely tight dimensional tolerances
- Enhanced electrical conductivity
- Ultra-thin finish layers
- Maximum wear resistance
2. Alodine (Chemical Film)
Alodine, also known as chromate conversion coating, is a chemical process that converts the surface of aluminum into a protective film through a controlled chemical reaction. This process creates a thin, electrically conductive layer that serves as both a protective and functional coating.
Why Consider Alodine Over Anodizing?
While anodizing creates a thick, non-conductive oxide layer, Alodine offers a unique combination of corrosion protection and electrical conductivity. This makes it particularly valuable for electronic components and applications where conductivity is crucial.
Let’s compare these finishing methods:
| Performance Factor | Alodine | Anodizing | Advantage |
|---|---|---|---|
| Electrical Conductivity | Excellent | Poor | Alodine |
| Coating Thickness | 0.00002-0.00005 inches | 0.0002-0.001 inches | Situation Dependent |
| Processing Time | 15-30 minutes | 40-60 minutes | Alodine |
| Cost per Square Foot | $1-2 | $4-8 | Alodine |
| Corrosion Protection | Good | Excellent | Anodizing |
| Color Options | Limited (gold/clear) | Moderate | Anodizing |
Recent aerospace industry study demonstrated Alodine’s effectiveness:
Manufacturing Case Study: An electronics manufacturer switched to Alodine for their aluminum enclosures:
- Maintained conductivity below 200 milliohms
- Reduced production time by 50%
- Achieved 500+ hours salt spray resistance
- Lowered finishing costs by 60%
When to Choose Alodine: Consider this coating when your project requires:
- Electrical conductivity
- Quick processing time
- Cost-effective corrosion protection
- Minimal dimensional changes
Stay with anodizing if you need:
- Maximum corrosion resistance
- Decorative finish options
- Superior wear resistance
- Thick protective layer
3. Electroplating
Electroplating is an electrochemical process that deposits a thin layer of metal (such as nickel or chrome) onto the aluminum surface through electrolysis. This creates a metallic coating that combines the base properties of aluminum with the surface characteristics of the plating metal.
Why Consider Electroplating Over Anodizing?
While anodizing modifies the existing aluminum surface, electroplating adds a new metallic layer that can dramatically enhance both performance and appearance. This distinction offers unique advantages for specific applications where conductivity and surface properties need enhancement.
Let’s compare these finishing methods:
| Performance Factor | Electroplating | Anodizing | Advantage |
|---|---|---|---|
| Electrical Conductivity | Excellent | Poor | Electroplating |
| Thermal Conductivity | Excellent | Fair | Electroplating |
| Surface Hardness | Very High | High | Electroplating |
| Cost (complexity dependent) | $5-15 per sq ft | $4-8 per sq ft | Anodizing |
| Process Control | Complex | Moderate | Anodizing |
| Environmental Impact | Higher | Moderate | Anodizing |
Supporting Evidence:
Industrial application data shows electroplating’s effectiveness:
Manufacturing Case Study: An automotive parts manufacturer transitioned to electroplated components:
- Increased surface hardness by 200%
- Improved thermal conductivity by 60%
- Enhanced corrosion resistance in salt spray tests
- Achieved superior wear resistance in high-stress areas
When to Choose Electroplating:
Consider this finishing method when your project requires:
- Maximum surface hardness
- Enhanced electrical conductivity
- Improved thermal management
- Specific metallic appearance
Stay with anodizing if you need:
- More cost-effective finishing
- Simpler process control
- Lower environmental impact
- Lighter weight finish
4. PVDF Coating
PVDF coating is a fluoropolymer-based finish that creates a high-performance protective layer on aluminum surfaces. The process involves applying a specialized fluoropolymer coating known for its exceptional resistance to weathering, UV radiation, and chemicals.
Why Consider PVDF Over Anodizing?
While anodizing provides excellent protection through surface conversion, PVDF coating offers superior long-term color stability and chemical resistance. This makes it particularly valuable for architectural and outdoor applications where appearance retention is crucial.
Let’s compare these finishing methods:
| Performance Factor | PVDF Coating | Anodizing | Advantage |
|---|---|---|---|
| UV Resistance | Excellent | Good | PVDF |
| Color Retention | 20+ years | 5-10 years | PVDF |
| Chemical Resistance | Excellent | Good | PVDF |
| Initial Cost | $8-12 per sq ft | $4-8 per sq ft | Anodizing |
| Thickness Control | 1.0-1.5 mils | 0.1-1.0 mils | Anodizing |
| Application Complexity | High | Moderate | Anodizing |
Supporting Evidence:
Architectural application data reveals PVDF’s long-term benefits:
Field Study Results: A 15-year comparison of building facades:
- PVDF retained 98% of original color after 15 years
- Demonstrated superior chalk resistance
- Maintained gloss levels above 80%
- Zero coating failures in harsh coastal environments
When to Choose PVDF:
Consider this coating when your project requires:
- Maximum UV resistance
- Long-term color stability
- Excellent chemical resistance
- Premium architectural finish
Stay with anodizing if you need:
- Lower initial costs
- Tighter thickness control
- Simpler application process
- Hard wearing finish
5. Mechanical Finishing
Mechanical finishing encompasses various techniques such as sandblasting, polishing, or grinding that physically modify the aluminum surface. Unlike chemical processes, these methods rely on mechanical abrasion and physical force to achieve the desired surface characteristics.
Why Consider Mechanical Finishing Over Anodizing?
While anodizing changes the surface through chemical processes, mechanical finishing offers direct control over surface texture and appearance. This method provides immediate visual and tactile results, often serving as an excellent preparation step or standalone finish.
Let’s compare these finishing methods:
| Performance Factor | Mechanical Finishing | Anodizing | Advantage |
|---|---|---|---|
| Surface Control | High | Moderate | Mechanical |
| Initial Cost | $3-6 per sq ft | $4-8 per sq ft | Mechanical |
| Processing Time | Quick | Lengthy | Mechanical |
| Corrosion Resistance | Limited | Excellent | Anodizing |
| Durability | Moderate | Excellent | Anodizing |
| Post-Processing Options | Excellent | Limited | Mechanical |
Supporting Evidence:
Manufacturing data highlights mechanical finishing’s versatility:
Case Study: A consumer electronics manufacturer implemented mechanical finishing:
- Reduced processing time by 65%
- Achieved consistent surface roughness of Ra 0.2-0.4
- Improved paint adhesion by 40%
- Decreased rejection rates for cosmetic defects
When to Choose Mechanical Finishing:
Consider this method when your project requires:
- Specific surface texture
- Quick turnaround time
- Preparation for other finishes
- Cost-effective processing
Stay with anodizing if you need:
- Superior corrosion protection
- Long-term durability
- Standalone protective finish
- Consistent color throughout
6. Bright Dip Finish
Bright dip finishing is a chemical polishing process that enhances the natural brightness of aluminum by removing a thin layer from the surface. This controlled chemical process creates a highly reflective, mirror-like finish without mechanical polishing.
Why Consider Bright Dip Over Anodizing?
While anodizing builds up a protective layer, bright dip selectively removes material to achieve a high-luster finish. For applications where maximum reflectivity and aesthetic appeal are crucial, bright dip offers unique advantages.
Let’s compare these finishing methods:
| Performance Factor | Bright Dip | Anodizing | Advantage |
|---|---|---|---|
| Surface Reflectivity | Excellent | Good | Bright Dip |
| Process Cost | $2-4 per sq ft | $4-8 per sq ft | Bright Dip |
| Processing Time | 10-20 mins | 40-60 mins | Bright Dip |
| Surface Protection | Limited | Excellent | Anodizing |
| Durability | Moderate | Excellent | Anodizing |
| Material Removal | 0.0005-0.001″ | None | Situation Dependent |
Supporting Evidence:
Industry data showcases bright dip’s aesthetic benefits:
Case Study: A lighting fixture manufacturer switched to bright dip:
- Achieved 85% light reflectivity
- Reduced processing costs by 45%
- Improved surface consistency
- Decreased production time by 50%
When to Choose Bright Dip:
Consider this finish when your project requires:
- Maximum surface reflectivity
- High aesthetic appeal
- Cost-effective processing
- Quick turnaround time
Stay with anodizing if you need:
- Long-term surface protection
- Wear resistance
- Color options
- Minimal dimensional change
Conclusion
Each surface finish alternative to anodizing offers unique advantages for specific applications. From powder coating’s versatility and cost-effectiveness to PVDF’s exceptional durability, and from Alodine’s electrical conductivity to bright dip’s aesthetic brilliance, product developers now have a comprehensive toolkit to optimize their designs for performance, cost, and appearance.
By carefully evaluating these options against your project requirements, you can select the ideal surface finish that balances functionality, durability, and budget.
Frequently Asked Questions
PVDF coating offers superior outdoor durability with 20+ years of color retention and excellent UV resistance. It outperforms other finishes in harsh environmental conditions and provides outstanding chemical resistance.
Bright dip finish provides the highest reflectivity, achieving up to 85% light reflectivity through chemical polishing. This process creates a mirror-like surface finish ideal for decorative applications.
Powder coating is the most cost-effective alternative for large-scale production, typically costing $2-4 per square foot compared to anodizing’s $4-8. It offers excellent durability, wide color options, and minimal waste through recyclable overspray.
Alodine (chemical film) provides the best electrical conductivity among anodizing alternatives. It creates a thin conductive layer while offering good corrosion protection, making it ideal for electronic components and RF shielding applications.
Mechanical finishing improves coating adhesion by creating specific surface textures and removing imperfections. This process can enhance paint adhesion by up to 40% and provides consistent surface roughness.
Yes, electroplating can increase surface hardness by up to 200% compared to anodizing while also providing excellent electrical conductivity, making it ideal for components requiring both durability and conductivity.
