How accurate is laser cutting?

laser cutting through metal
Picture of Written by Miss Tee

Written by Miss Tee

Over 15 years of hands-on experience in CNC machining and sheet metal fabrication, supporting product teams across medical, aerospace, audio, and industrial sectors. Specializes in tolerance-critical parts, DFM consultation, and prototype-to-production transition support.

All Posts

Understanding laser cutting tolerances is crucial for design success and cost control. With experience fabricating precision parts across aerospace, medical, and industrial sectors, we’ve learned that achievable accuracy depends heavily on material type, thickness, and part geometry.

Laser cutting typically achieves ±0.005″ to ±0.010″ (±0.13 to ±0.25 mm) tolerances on metals, with fiber lasers reaching ±0.001″ to ±0.003″ (±0.025 to ±0.075 mm) on thinner materials. Actual precision depends on material thickness, laser type, and part complexity. ISO 9013 defines standards for thermal cutting processes including laser cutting.

Learn how thickness affects kerf, when geometry limits precision, and how to spec drawings for consistent results—plus real production insights.

Table of Contents

How does laser cutting accuracy compare to waterjet or CNC machining?

Laser cutting achieves ±0.002″ to ±0.005″ tolerances, waterjet delivers ±0.001″ to ±0.002″, and CNC machining reaches ±0.001″ to ±0.003″. For parts under 0.5″ thick requiring ±0.003″ or looser tolerances, laser cutting offers the best speed-to-cost ratio. Waterjet suits thick materials or heat-sensitive applications, while CNC handles complex geometries needing secondary operations.

Quick Decision Framework:

  • Material <0.5″ thick + ±0.003″ tolerance → Laser cutting (fastest, lowest cost)
  • Material >1″ thick or heat-sensitive → Waterjet (no thermal effects)
  • Critical holes/threads ±0.001″ → CNC machining (secondary ops possible)

From our experience cutting aerospace brackets and medical enclosures, fiber lasers consistently hold ±0.002″ on aluminum up to 0.5″ thick with 2-day lead times. Waterjet maintains ±0.001″ precision regardless of thickness but requires 5-7 days due to slower cutting speeds. CNC machining delivers ±0.001″ repeatability but needs 7-10 days for complex setups.  Cost comparison: laser cutting runs $0.50-2.00 per linear inch, waterjet costs $2.00-5.00 per inch, while CNC pricing starts at $3.00-8.00 per inch depending on complexity.

For regulated industries requiring documentation, we provide inspection reports and certificates of compliance with our tolerance achievements. Medical device customers often need this traceability for FDA submissions, while aerospace projects require detailed dimensional reports for quality audits.

Design Takeaway: Reserve tight tolerances (±0.001″) for functional features only. Apply ±0.003″ standard tolerances elsewhere to minimize cost and lead time. Consider hybrid approaches: laser cutting for perimeters + CNC for critical holes.

laser cutting on metal at left close shot

What materials give the best laser cutting accuracy and edge quality?

6061 aluminum delivers the best laser cutting accuracy, achieving ±0.002″ to ±0.003″ tolerances with Ra 1.6-3.2 μm surface finish. Mild steel and 304 stainless follow closely with ±0.003″ precision. Material selection directly impacts both achievable tolerance and cost—6061’s excellent thermal conductivity prevents warping while harder alloys like 7075 require 25% slower speeds.

Material<0.125" Tolerance0.125″–0.5″ Tolerance>0.5″ ToleranceWhy It Performs Well
6061 Aluminum±0.002″±0.003″±0.005″Low thermal expansion, clean kerf
Mild Steel±0.003″±0.003″±0.005″Fast cutting, nitrogen prevents oxide
304 Stainless±0.003″±0.004″±0.006″Work hardens, needs heat management
7075 Aluminum±0.004″±0.005″±0.007″Higher strength = more cutting stress

From fabricating medical device housings, we learned that 6061 aluminum consistently delivers the cleanest edges due to its thermal properties—heat dissipates quickly, preventing melt-back that degrades tolerance. Stainless steel produces excellent surface finish but requires nitrogen assist gas to prevent oxidation, adding $0.50-1.00 per linear foot to cutting costs. We measure edge quality using surface profilometers, confirming Ra 1.6 μm on 6061 versus Ra 2.5 μm on 7075 aluminum.

We often see engineers over-specify ±0.001″ tolerances on parts where ±0.003″ would function identically. On recent 7075 aluminum brackets, applying tight tolerances only to critical mounting features (rather than all dimensions) cut costs 30% while meeting all assembly requirements. Score-free cuts are guaranteed on steel up to 10mm, stainless up to 6mm, and aluminum up to 4mm—beyond these thicknesses, thermal effects introduce edge taper and potential secondary finishing needs.

Design Takeaway: Choose 6061 aluminum for prototypes requiring tight tolerances and anodizing compatibility. Use mild steel for production where speed and cost matter more than surface finish. Avoid laser cutting copper/brass unless your supplier has specialized fiber laser parameters for reflective materials.

What tolerances can I expect from laser cutting?

Standard laser cutting achieves ±0.005″ tolerances for clearance fits, while press fits requiring ±0.002″ to ±0.003″ are possible on materials under 0.25″ thick. Critical factor: kerf compensation—design holes 0.002″ to 0.004″ undersize since laser kerf ranges from 0.1mm to 0.3mm depending on material and beam focus.

Building on material performance (covered above), tolerance capability depends heavily on application type and part geometry. For the audio equipment chassis we manufacture, press fit assemblies require ±0.002″ on mating diameters while maintaining ±0.005″ on non-critical perimeter cuts. This hybrid tolerance approach works because thermal effects vary by feature size—small holes maintain precision better than large perimeters due to localized heat input.

Press Fit Design Guidelines:

  • 0.125″ thick material: Design holes 0.002″ undersize for medium press fits
  • 0.25″ thick material: Design holes 0.003″ undersize due to increased kerf
  • Parts >12″ long: Add 0.001″ positional tolerance for thermal expansion
  • Critical assemblies: Specify ±0.002″ only where interference is required



We validate press fit tolerances using CMM inspection with 0.0005″ accuracy. Key learning: parts over 0.5″ thick show 0.001″ to 0.003″ positional drift due to heat-affected zones and beam taper. For precision assemblies, we recommend hybrid approaches—laser cutting perimeters for speed, then drilling critical holes to ±0.001″ as secondary operations.

We often see engineers specify ±0.001″ mounting holes but apply this tolerance across entire parts. By applying ±0.001″ only to four critical holes and ±0.005″ elsewhere, costs typically reduce 35% while meeting assembly requirements perfectly.

Design Takeaway: Apply the tightest tolerances only where functionally required—each step tighter (±0.005″ to ±0.003″ to ±0.002″) increases costs exponentially. For press fits, always account for kerf in your design dimensions rather than expecting post-process compensation.

laser cutting on a thin metal plate with spark

Does material thickness affect laser cutting accuracy?

Material thickness significantly impacts laser cutting accuracy. Parts under 0.25″ thick achieve ±0.002″ to ±0.003″ tolerances, while materials over 0.5″ typically reach ±0.005″ to ±0.007″ due to beam taper and thermal effects. Above 1″ thick, waterjet becomes cost-competitive with superior precision.

ThicknessToleranceCost vs BaselineProcess Recommendation
<0.125"±0.002″1.0×Laser optimal
0.125″–0.5″±0.003″1.15×Laser standard
0.5″–1.0″±0.005″1.4×Laser acceptable
>1.0″±0.007″+2.0×+Consider waterjet

The physics behind accuracy degradation: thicker materials require higher laser power, creating wider heat-affected zones and beam taper effects. Focal depth limitations mean the laser beam diverges through thick sections, increasing kerf from 0.1mm on thin materials to 0.3mm on thick sections. We validate these tolerances using CMM inspection with 0.0005″ accuracy across hundreds of production parts.

Fiber lasers max out around 25mm thickness for metals, while maintaining ISO 9013 Class 2 tolerances. Score-free cuts are guaranteed on steel up to 10mm, stainless up to 6mm—beyond these thicknesses, expect secondary deburring operations. One medical device manufacturer split 0.75″ thick brackets into two 0.375″ components, reducing costs 35% while maintaining assembly function.

Design Takeaway: Keep critical features on sections under 0.5″ thick. For thicker materials requiring tight tolerances, specify ±0.005″ or consider waterjet cutting. Above 1″ thick, hybrid approaches often optimize cost: rough laser cutting + finish machining.

What are the geometric limits for laser cutting features?

Minimum hole diameter should equal material thickness, with 0.5mm absolute minimum. Feature spacing requires 2x material thickness between cuts to prevent thermal interaction. Corner radii automatically apply: 0.3mm on <3mm thick materials, 0.1x thickness on thicker sections due to beam physics and machine limitations.

Building on thickness considerations (covered above), geometric constraints directly impact both manufacturability and cost. Pierce points require adequate material for clean hole starts—holes smaller than material thickness often result in out-of-round geometry or incomplete cuts.

Critical Design Rules:

  • Hole diameter: ≥1x thickness (0.5mm minimum)
  • Feature spacing: ≥2x thickness between cuts
  • Edge distance: ≥1x hole diameter from edges
  • Corner radius: ≥0.3mm (auto-applied, larger reduces cost)



We measure feature quality using optical comparators and validate dimensional accuracy with CMM systems. Parts with insufficient bridging (50% thickness minimum) show 15% higher scrap rates due to feature burn-through or part distortion during cutting. Complex geometries with >20 holes per square inch require progressive cutting strategies to manage heat buildup.

Kerf compensation becomes critical for mating features—design press-fit holes 0.002″ to 0.004″ undersize depending on thickness. Sharp corners increase cutting time 25% due to deceleration requirements, while 0.5mm radii enable full-speed cutting.

Design Takeaway: Follow 1x thickness rule for holes and 2x spacing between features. Specify corner radii ≥0.5mm to reduce cutting costs. When geometric limits conflict with function, consider drilling critical holes after laser cutting perimeters—often more economical than oversized features.

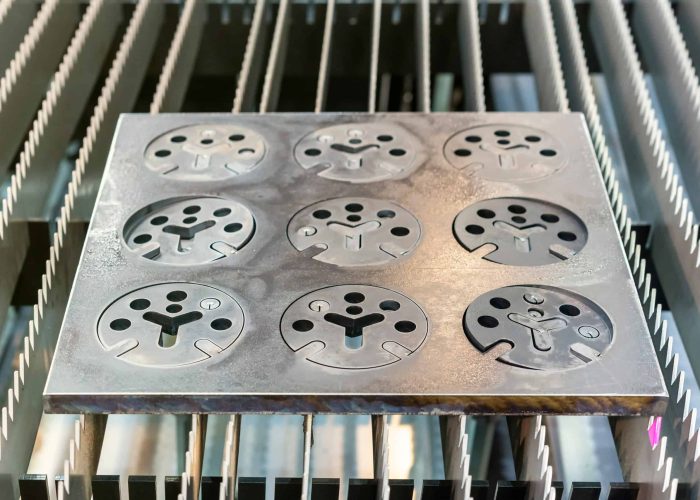

10mm thickness laser cutting components on table

Do I need to adjust hole sizes or slot widths for laser kerf?

Yes, adjust for kerf when tight fits are required. Fiber laser kerf ranges from 0.006″ to 0.040″ (0.15-1.0mm), while CO2 laser kerf ranges from 0.010″ to 0.020″ (0.25-0.50mm) depending on material thickness. For press fits, design holes 0.002″ to 0.004″ undersize. For clearance fits, kerf compensation is typically unnecessary.

Kerf by Laser Type & Material:

  • Fiber laser on metals: 0.006″-0.015″ (thin), up to 0.040″ (thick)
  • CO2 laser general: 0.010″-0.020″
  • Material impact: Brass/copper show larger kerf than steel
  • Thickness effect: Kerf ranges from 0.08mm-1mm depending on material type and thickness



Most modern laser services handle kerf compensation automatically—you design to nominal dimensions, they offset the cutting path. However, for tab-and-slot assemblies, design slots 0.002″ wider than tab thickness for easy assembly. Critical insight from audio chassis manufacturing: over-compensation costs more than under-compensation. Slightly oversized holes often function adequately, while undersized holes require secondary drilling.

When NOT to compensate: Standard fastener holes (clearance fits), large panels with loose tolerances, prototype parts where exact fit isn’t critical. Different suppliers may show kerf variation, so test cuts on scrap material validate actual kerf before production.

Design Takeaway: Only compensate for kerf when interference fits are required. For most applications, design to nominal dimensions and specify appropriate fit tolerances. When precision matters, request kerf compensation from your supplier rather than adjusting your design.

Can laser cutting maintain consistent tolerances in production quantities?

Yes, modern fiber lasers maintain consistent tolerances across production runs with proper controls. Standard tolerances of ±0.005″ are achievable for most parts, with ±0.002″ possible for smaller features. Key factors: material batch consistency, thermal management, and regular machine calibration maintain repeatability.

Production Consistency Factors:

  • Material batch variation: Certified materials show tighter dimensional spread
  • Thermal stability: Machine warmup and periodic cooling cycles required
  • Machine calibration: Regular calibration essential for maintaining tolerances
  • Environmental control: Temperature and humidity affect cutting consistency



Statistical Process Control (SPC) monitoring tracks key parameters to identify trends and variations, allowing for timely corrections. Real production insight: First Article Inspection (FAI) validates setup before full production, while in-process inspection catches deviations early. Parts cut early in production runs often show tighter tolerance than later parts due to thermal drift and gradual machine wear.

In automotive industry, continuous monitoring ensures consistent tolerance adherence across high-volume production. Machine maintenance schedules include regular optics cleaning and beam alignment verification. Material certification reduces batch-to-batch variation significantly compared to standard grades.

For quantities under 100 parts, standard materials are typically acceptable. For 1000+ parts requiring tight tolerances, specify certified materials and implement periodic inspection protocols.

Design Takeaway: Specify material certification for critical tolerance parts in production quantities. Plan first-part inspection and periodic verification throughout runs. Consider batch processing for highest consistency—cutting similar parts together minimizes setup variation and thermal effects.

laser cutting-close shot

What should I call out in my drawing to get consistent laser cutting results?

Specify general tolerance ±0.005″ with GD&T for critical features, material grade certification, and edge finish requirements. Include material thickness tolerance specification—standard sheet tolerance is ±10%, but laser accuracy improves with ±5% control. Avoid ±0.001″ tolerances without proper datum structure.

Essential Drawing Callouts:

  • General tolerance: “±0.005″ UNLESS OTHERWISE SPECIFIED”
  • Material spec: “6061-T6 ALUMINUM, 0.125″ ±0.005″ THICK, LASER GRADE”
  • Critical dimensions: Use GD&T (⌖0.005Ⓜ for hole patterns, ⊥0.003 for perpendicularity)
  • Edge finish: “Ra 3.2μm STANDARD” or “Ra 1.6μm PRECISION”



All cutting parts are manufactured according to DIN ISO 2768-1 m (general tolerances) unless otherwise specified. For parts requiring powder coating, specify “NITROGEN ASSIST GAS—NO OXIDE LAYER PERMITTED” to prevent coating adhesion issues.

Drawing Template Checklist: ✓ General tolerance block completed? ✓ Material grade and thickness tolerance specified? ✓ Critical features use proper GD&T symbols? ✓ Edge finish requirements clear? ✓ Special process notes included (assist gas, deburring)?

Common mistakes: specifying ±0.001″ on hole patterns without position tolerance creates measurement ambiguity. Each additional tight tolerance requirement increases manufacturing complexity and cost. Include deburring requirements: “BREAK SHARP EDGES 0.005″ MAX” provides clear guidance without over-specification.

Design Takeaway: Use standard tolerance ±0.005″ with specific callouts only where function demands. Apply GD&T to critical features with proper datums. Include material certification requirements for production quantities. Specify edge finish based on application—standard Ra 3.2μm for most applications.

Conclusion

Laser cutting delivers ±0.002″ to ±0.005″ tolerances when properly specified and controlled. Success depends on smart material selection, appropriate tolerance application, and clear drawing callouts. Most projects benefit from ±0.005″ general tolerance with tighter specs only on functional features.

Contact us to explore laser cutting solutions tailored to your precision manufacturing requirements.

Frequently Asked Questions

Use ±0.005″ as general tolerance with GD&T symbols for critical features only. Specify material grade and thickness tolerance (±0.005″ preferred over standard ±10%). Include edge finish requirements: Ra 3.2μm for standard applications, Ra 1.6μm for precision assemblies. Avoid ±0.001″ unless functionally required.

 No, for most applications. Modern laser services handle kerf compensation automatically. Only compensate when designing press fits or tab-and-slot assemblies—design slots slightly wider than tab thickness based on your supplier’s kerf specifications. For standard clearance fits and mounting holes, design to nominal dimensions.

Fiber lasers cut up to 25mm (1″) thickness, but accuracy degrades with thickness. For materials over 0.5″ thick requiring tight tolerances, consider waterjet cutting or hybrid approaches: laser cutting perimeters + machining critical features. Above 1″ thick, waterjet often provides better precision and cost-effectiveness.

6061 aluminum delivers the best combination of tight tolerance (±0.002″) and clean edges (Ra 1.6μm). Mild steel cuts fastest with good precision, while stainless steel requires slower speeds but produces excellent surface finish. Avoid laser cutting copper or brass unless your supplier has specialized fiber laser capabilities.

Yes, with proper controls. Specify certified materials for reduced batch variation, plan first article inspection, and implement periodic verification during production runs. Fiber lasers maintain ±0.005″ repeatability across production when properly calibrated and maintained with statistical process control.

For most laser-cut parts, ±0.005″ is achievable with standard processes and pricing. Tolerances tighter than ±0.002″ often require specialized setups and slower cutting speeds, significantly increasing costs. We recommend tolerancing only critical features tightly and using ±0.005″ elsewhere for cost efficiency.
