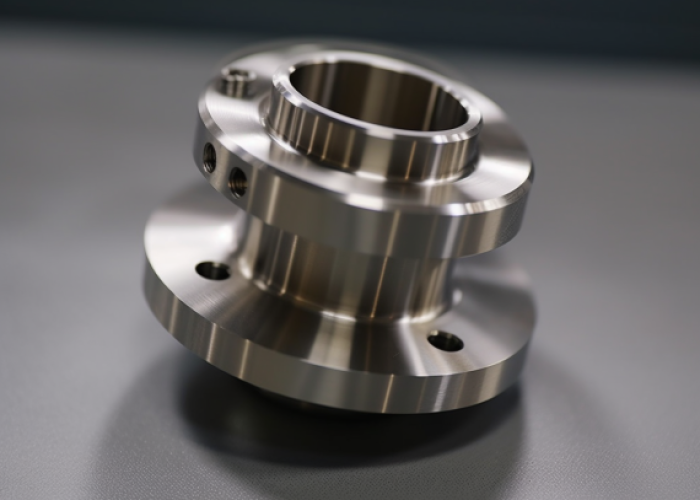

Titanium machining demands specialized knowledge beyond standard CNC operations—from material grade selection to cost-effective design strategies. With extensive experience manufacturing titanium components for aerospace, medical, and high-performance applications, understanding these factors early prevents costly redesigns and ensures project success.
Titanium CNC machining costs 3-5x more than aluminum due to slower cutting speeds, specialized tooling, and material expense. Grade 5 (Ti-6Al-4V) offers superior strength but requires more aggressive cooling than Grade 2. Design optimization—larger radii, simplified geometry, and consolidated setups—can reduce costs by 20-40% without compromising performance.
Learn to choose the right titanium grade, reduce machining costs with smart geometry, and understand tolerances, finishes, and post-machining options.
Table of Contents
When titanium is a good material choice for my machined part?
Choose titanium when strength-to-weight ratio, corrosion resistance, or biocompatibility creates measurable value exceeding 15-25x material cost premium over aluminum. Grade 2 suits corrosion-critical applications; Grade 5 justifies cost when maximum structural performance is required. Avoid titanium for high-volume production unless extreme performance requirements eliminate aluminum alternatives.
| Application | Material Choice | Key Justification | Avoid Titanium If |
|---|---|---|---|
| Aerospace structural | Grade 5 Ti-6Al-4V | Weight savings = fuel efficiency | 7075 aluminum meets strength needs |
| Medical implants | Grade 2 or 5 | Biocompatibility required | Non-contact applications |
| Marine hardware | Grade 2 | 20+ year saltwater resistance | Coating protection is acceptable |
| Industrial brackets | 7075 Aluminum | 90% strength, 1/20th cost | Unless used in extreme environments |
Aerospace weight reduction provides substantial lifecycle value through fuel savings, with every kilogram removed reducing fuel consumption by ~3.5% per flight hour. Grade 2 titanium offers 50 ksi strength with excellent corrosion resistance, while Grade 5 provides 130 ksi for maximum structural performance. However, aluminum delivers 90% of titanium’s strength at significantly lower cost for most applications.
Grade 2 excels in marine environments and chemical processing where its corrosion resistance outperforms stainless steel. Grade 5 becomes cost-effective for aerospace structural components and medical implants where strength-to-weight ratio directly impacts performance. Medical applications typically specify Grade 2 for housings and Grade 5 for load-bearing implants due to biocompatibility requirements.
Both grades conform to ASTM B265 specifications, with Grade 2 (UNS R50400) being commercially pure titanium and Grade 5 (Ti-6Al-4V) containing 6% aluminum and 4% vanadium. Material costs range from $40-60 per pound for Grade 5 compared to $1-2.50 for aluminum alloys.
Design Takeaway: Reserve titanium for applications where specific performance requirements—biocompatibility, extreme corrosion resistance, or critical strength-to-weight ratios—create quantifiable value exceeding the 15-25x cost premium over aluminum. Use Grade 2 for corrosion-critical applications, Grade 5 when maximum structural performance justifies machining complexity.
Why is machining titanium more costly than aluminum or steel?
Titanium machining costs 3-5x more than aluminum due to slower cutting speeds (60-100 FPM vs 800-2000 FPM), specialized carbide tooling requirements, and material expense ($40-60/lb vs $1-2.50/lb for aluminum). For a typical $1,000 aluminum part, expect $3,000-5,000 in titanium, plus 2-3 weeks additional lead time for prototype quantities. Tool wear accelerates rapidly due to titanium’s work-hardening properties and low thermal conductivity.
Titanium’s low thermal conductivity causes heat buildup at the cutting zone, leading to faster tool degradation and potential workpiece distortion. Cutting speeds must be reduced to 60-100 FPM compared to aluminum’s 800-2000 FPM to prevent excessive tool wear. Production runs under 100 units see titanium overhead dominate total cost since setup complexity and specialized tooling requirements get spread across fewer parts.
Grade 5 titanium material costs $40-60 per pound versus $1-2.50 for aluminum alloys, but machining labor often exceeds material cost. Specialized coolant systems and high-pressure flood cooling are necessary to manage heat generation. Not all machine shops can handle titanium effectively—verify vendor capabilities by asking about carbide tooling inventory, coolant systems, and previous titanium experience before requesting quotes.
When budgeting titanium projects, allocate 60% for machining labor, 30% for material, and 10% for additional setup/tooling compared to aluminum’s typical 40% labor, 40% material split.
Design Takeaway: Budget 3-5x cost multiplier and extended lead times when specifying titanium. Verify vendor titanium capabilities early—request references for similar parts and ask about specialized tooling availability to avoid project delays.
What design changes reduce titanium machining costs?
Incorporate larger radii (minimum R0.5mm), avoid deep pockets exceeding 3x diameter, and consolidate operations into single setups to reduce titanium machining costs by 20-40% while maintaining performance. These changes can save $500-1,500 on a typical $3,000 titanium part without compromising functionality. Sharp corners and complex geometries increase tool wear and heat generation significantly.
Real cost impact: changing sharp internal corners to R0.5mm radii reduces tool stress by 25-30%, saving approximately $200-400 per part on complex geometries. Limiting pocket depths to 2x diameter instead of 4x diameter can cut machining time by 40%, translating to $600-800 savings on deep-pocket components. Multiple setups increase costs dramatically due to titanium’s work-hardening tendency requiring fresh cutting approaches.
When reviewing designs with your team, prioritize these changes: first eliminate sharp corners (highest impact, easiest change), then reduce pocket depths (moderate impact, may require design compromise), finally consolidate setups (lowest individual impact but critical for complex parts). Shorter cutting tools minimize deflection and chatter, improving surface finish while extending tool life.
Communicate requirements clearly in drawings with notes like “R0.5mm minimum radii” and “Single setup preferred.” Efficient material usage through optimized blank sizes reduces high raw material waste costs. Wall thickness should exceed 1.5mm minimum to prevent deflection during machining operations.
Design Takeaway: Apply the three-step priority (eliminate sharp corners → reduce pocket depths → consolidate setups) to achieve 20-40% cost savings. Include titanium-friendly parameters in drawing notes to communicate requirements effectively to vendors.
Can I hold tight tolerances when machining titanium?
Titanium can achieve ±0.02mm tolerances with proper setup, but ±0.05mm is more practical and cost-effective for most applications. Use ±0.05mm for general dimensions, ±0.02mm for bearing surfaces and threaded holes, and reserve ±0.01mm for precision medical implants only. High-precision machining centers with thermal compensation can maintain ±0.013mm on specific features, but this requires specialized equipment that doubles machining costs.
Titanium’s thermal expansion during machining creates dimensional challenges compared to aluminum, which holds ±0.025mm routinely. Work-hardening tendency means tolerances can drift during long cycles as cutting forces change . Apply this tolerance hierarchy: general dimensions get ISO 2768-m (±0.1mm for <30mm features), functional surfaces get ±0.05mm, and critical mating features get ±0.02mm.
Over-specifying tolerances increases costs exponentially—a part with ten ±0.01mm dimensions costs 3-4x more than the same part with two critical tight tolerances and general dimensions elsewhere. CMM inspection becomes critical for tight-tolerance titanium parts due to thermal measurement challenges .
Drawing annotation strategy: mark critical dimensions individually, add general note “Non-dimensioned features per ISO 2768-m,” and include “Titanium-capable shop required” to ensure vendor qualification.
Design Takeaway: Use ±0.05mm for functional surfaces, ±0.02mm for critical features only. Apply ISO 2768-m to non-critical dimensions and require vendor capability verification for tolerances below ±0.05mm to avoid project delays.
Will titanium create surface finish or edge quality issues on my part?
Titanium typically achieves Ra 3.2 µm finish for functional surfaces, with Ra 1.6 µm achievable for sealing applications, but plan secondary operations for cosmetic requirements below Ra 1.6 µm. Work-hardening and galling can create edge quality challenges requiring specialized cutting strategies and flood coolan . Surface finish directly impacts both function and cost—specify only what your application requires.
Apply this finish hierarchy: Ra 3.2 µm for general-purpose parts, Ra 1.6 µm for sealing components where smoother surface is needed, Ra 0.8 µm for precision assemblies requiring secondary polishing. Titanium’s springback effect can cause poor edge quality as material returns to position after tool passes
Tool chatter from insufficient rigidity creates parallel ridge marks that require rework. Climb milling reduces heat buildup and improves surface finish compared to conventional milling. For sealing surfaces, Ra 1.6 µm ensures reliable gasket performance without secondary operations.
Cosmetic applications requiring mirror finishes need electropolishing or mechanical polishing, adding $50-200 per part depending on complexity. Anodizing after machining can improve both appearance and corrosion resistance, but requires base finish better than Ra 3.2 µm for uniform coating.
Quality planning: specify surface finish measurement locations on drawings, require profilometer verification for critical surfaces, and include “deburr all edges” notation since titanium’s work-hardening makes edge finishing more challenging than aluminum.
Design Takeaway: Specify Ra 3.2 µm for functional surfaces, Ra 1.6 µm for sealing applications only. Plan secondary finishing for cosmetic requirements and include specific measurement locations on drawings.
Can machined titanium parts be welded or assembled?
Yes, titanium parts can be TIG welded with proper inert gas shielding or assembled with stainless steel fasteners, but welding requires specialized procedures while mechanical assembly offers easier serviceability. Grade 2 titanium offers excellent weldability using MIG and TIG methods with proper inert gas protection. Choose welding for permanent, high-strength connections or mechanical fastening for serviceable assemblies.
TIG welding requires argon shielding and accessible joint design to prevent contamination. Properly welded joints achieve strength comparable to base material when correct procedures are followed. Post-weld stress relief may be necessary for critical applications.
Assembly method selection:
- Permanent, high-strength connections → TIG welding with argon shielding
- Serviceable, removable connections → 316SS fasteners with anti-seize
- High-volume production → Welding reduces part count and assembly time
- Prototypes and field-serviceable units → Mechanical fastening preferred
For mechanical assembly, use 316 stainless steel fasteners to prevent galvanic corrosion. Apply anti-seize compounds and reduce torque values to prevent galling between titanium and stainless steel threads. Never mix titanium with aluminum fasteners in outdoor environments due to severe galvanic corrosion risk.
Welded assemblies require specialized procedures and additional lead time for inspection. Mechanical assemblies offer easier maintenance and field serviceability but require more components.
Design Takeaway: Choose welding for permanent assemblies requiring high strength, mechanical fastening for prototypes and serviceable products. Use compatible fastener materials and plan for appropriate inspection requirements.
What surface treatments or coatings are compatible with machined titanium?
Anodizing, passivation, and natural oxide formation provide corrosion protection, but as-machined titanium often performs adequately in mild environments, saving treatment costs. Titanium forms a protective oxide layer naturally when exposed to air, providing self-healing corrosion protection. Treatment selection depends on environment severity and functional requirements.
As-machined titanium develops protective oxide layers immediately upon air exposure, often eliminating treatment necessity. Type II anodizing creates color through light interference without dyes or pigments that can fade. Type III anodizing produces a gray, anti-galling surface ideal for threaded components.
Treatment selection hierarchy:
- Indoor/mild environments → As-machined (natural oxide sufficient)
- Marine/chemical exposure → Type II anodizing for enhanced corrosion resistance
- Cosmetic/identification needs → Type II anodizing for color coding
- High-wear threaded components → Type III anodizing for anti-galling properties
Design considerations: account for coating thickness in tolerances, specify “mask threads M6 and smaller” on drawings, and plan treatment before final assembly. Anodized coatings can be removed by abrasion in high-wear applications, so consider service environment when specifying treatments.
For aerospace applications, specify treatments per AMS 2488 requirements. Medical devices need biocompatible surface treatments per device-specific standards. Include treatment callouts in title block for clear vendor communication.
Design Takeaway: Evaluate environment severity before specifying treatments—as-machined often suffices for indoor applications. When treatments are needed, account for thickness changes in CAD and specify masking requirements clearly on drawings.
Conclusion
Titanium machining requires careful material selection and design optimization to justify its premium cost over aluminum. Grade 2 suits corrosion-critical applications while Grade 5 provides maximum structural performance. Focus design changes on larger radii and simplified geometry for significant cost savings. Contact us to explore titanium manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
TIG welding with argon shielding provides permanent, high-strength joints for production assemblies. Use 316 stainless steel fasteners with anti-seize compounds for serviceable connections. Choose welding for high-volume production, mechanical fastening for prototypes and field-serviceable products.
±0.05mm tolerances are practical for most titanium applications, with ±0.02mm achievable for critical features using proper setup. Reserve tight tolerances for functional surfaces only, applying ISO 2768-m to non-critical dimensions for cost control.
As-machined titanium often provides adequate corrosion protection for indoor environments. Specify anodizing for marine/chemical exposure, color identification needs, or anti-galling requirements on threaded components. Evaluate environment severity before adding treatment costs.
Grade 2 (commercially pure) offers excellent machinability and corrosion resistance at lower cost than Grade 5. Reserve Grade 5 for applications requiring maximum strength-to-weight ratio. Grade 2 machines more predictably and reduces tooling costs during prototyping phases.
Incorporating R0.5mm minimum radii on internal corners, limiting pocket depths to 3x diameter, and consolidating operations into single setups can reduce costs by 20-40%. These changes minimize tool wear and heat generation while maintaining part performance.
Titanium parts typically cost 3-5x more than equivalent aluminum components due to material cost and specialized machining requirements. However, titanium’s superior corrosion resistance and strength often justify the premium in aerospace, medical, and marine applications.
