When durability matters in metal manufacturing, black oxide often falls short despite its popularity. While it provides basic corrosion resistance, modern engineering demands more robust solutions. From aerospace components to outdoor machinery, these five surface treatments offer significantly better protection and longevity than traditional black oxide processes.
Black oxide provides moderate protection but wears quickly, lasting months to a few years. Superior alternatives include anodizing, powder coating, hot-dip galvanizing, zinc plating with chromate conversion (, and e-coating). Each offers better corrosion resistance and wear protection, with service lives ranging from several years to decades depending on the application environment.
Discover how each of these treatments works, their specific advantages, and which applications they serve best. We’ll also explore some niche options for specialized industrial applications that require exceptional durability.
Table of Contents

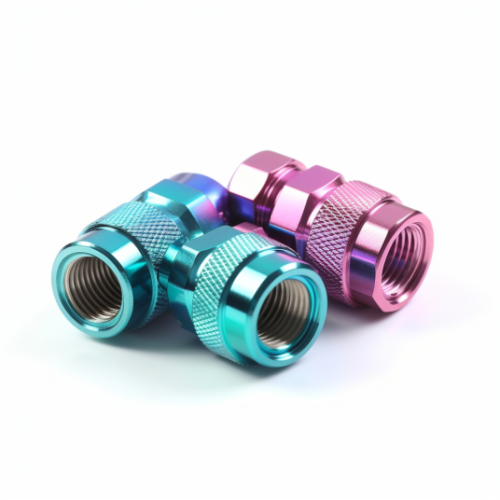

Anodizing: Industry-Proven Protection for Aluminum Parts
Compared to black oxide’s typical 6-12 month lifespan in regular use, anodizing creates a permanent protective layer that lasts 20+ years under similar conditions. The coating becomes part of the aluminum surface rather than just sitting on top, making it impossible to chip or peel like surface treatments.
The electrochemical process transforms the aluminum surface into an oxide layer 10-25 times thicker than natural aluminum oxide. Unlike black oxide’s simple chemical conversion, anodizing creates a deep, porous structure that can be sealed for enhanced protection and dyed for color coding or aesthetic purposes.
Applications & Performance:
- Outdoor Equipment: Survives 10+ years of direct sun and rain exposure where black oxide typically fails within a year
- Manufacturing Equipment: Maintains appearance and protection even with daily cleaning using industrial solvents
- High-Traffic Parts: Shows minimal wear after 100,000+ cycles of repeated contact, while black oxide typically shows significant wear after 10,000 cycles
- Marine Components: Resists saltwater exposure for 5+ years with proper sealing, compared to black oxide’s 3-6 month life in similar conditions
Key Advantages:
- Harder than the base aluminum (similar to tool steel hardness)
- Maintains dimensional accuracy within 0.0002 inches
- Available in clear and various colors for part identification
- Resists most chemicals used in manufacturing environments
- Can withstand temperatures from freezing to boiling without degradation
Practical Limitations:
- Only works on aluminum and its alloys
- Cannot be easily touched up in the field like black oxide
- Higher initial cost but lower lifetime cost due to longevity
- Some colors may fade in direct sunlight over 5+ years
Cost Perspective:
While anodizing costs 2-3 times more than black oxide initially, you’ll replace black oxide coated parts 15-20 times over the lifetime of one anodized part. For high-value components, this translates to significant savings in maintenance and replacement costs.
Powder Coating: Maximum Protection for High-Wear Industrial Parts
When black oxide shows visible wear within months, powder coating maintains its protective barrier for 15-20 years in outdoor conditions. The thick coating (50-150 μm) provides physical protection that’s 30-50 times thicker than black oxide, making it virtually impossible to wear through under normal use.
Unlike black oxide’s wet chemical dipping process, powder coating uses electrostatically charged dry powder sprayed onto the part. The coating process involves:
- Surface preparation (blast cleaning or chemical wash) – critical for long-term adhesion
- Powder application at room temperature – allowing better coverage of complex shapes
- Single bake cycle at 350-400°F (175-200°C) for 10-20 minutes – melting and curing the powder into a continuous protective film
This simple three-step process results in dramatically better coverage than black oxide’s multi-dip process, especially for parts with complex geometries or internal surfaces.
Applications & Performance:
- Outdoor Machinery: Withstands 15+ years of sun, rain, and temperature fluctuations where black oxide fails within months
- Manufacturing Equipment: Resists daily impacts and abrasions that would wear through black oxide in weeks
- Chemical Processing Equipment: Maintains integrity even after years of exposure to industrial cleaners and mild chemicals
- Agricultural Equipment: Survives seasonal exposure to fertilizers and pesticides for 10+ years
- Heavy Transportation Parts: Retains protection even after thousands of hours of road salt and debris exposure
Key Advantages:
- Impact resistant: Survives direct hits that would chip black oxide immediately
- Chemical resistance: Handles exposure to most industrial solvents and cleaners
- Color options: Available in thousands of colors for safety coding or branding
- One-step coating: No primers or topcoats needed unlike multi-step black oxide
- Environmentally friendly: No heavy metals or VOCs in the finished coating
Practical Limitations:
- Cannot be easily touched up in the field (requires complete stripping and recoating)
- Not suitable for parts with tight tolerances due to thick coating
- Heat sensitive – most formulations limited to 200°C maximum
- May show UV fading in bright colors after 5-7 years of direct sunlight
Cost Perspective:
Initial investment runs 3-4 times higher than black oxide, but powder coating typically outlasts 20+ black oxide applications. For large parts or high-volume production, automated powder coating lines can reduce per-part costs to nearly match black oxide while providing far superior protection.
Hot-Dip Galvanizing: Ultimate Protection for Steel in Harsh Environments
When black oxide corrodes within a year outdoors, hot-dip galvanizing provides 50+ years of maintenance-free protection. The zinc coating (50-150 μm) not only creates a barrier but actively sacrifices itself to protect the steel beneath – a unique advantage over passive treatments like black oxide.
Unlike black oxide’s room-temperature chemical process, hot-dip galvanizing immerses steel in molten zinc at 850°F (450°C). The process follows a simple but precise sequence:
- Caustic cleaning – removes oils and greases
- Acid pickling – strips rust and mill scale
- Fluxing – prepares surface for zinc bonding
- Zinc immersion – creates metallurgical bond
- Cooling and inspection – ensures coating quality
This metallurgical bonding creates a coating that’s literally part of the steel, unlike black oxide’s surface conversion layer.
Applications & Performance:
- Bridge Components: 75+ years service life in harsh environments
- Transmission Towers: 40+ years without maintenance in rural areas
- Solar Panel Frames: 35+ years in outdoor exposure
- Highway Guard Rails: 30+ years despite road salt exposure
- Structural Steel: Survives decades of buried or marine environments where black oxide fails within months
Key Advantages:
- Complete coverage including inside corners and recesses
- Self-healing at scratches and minor damage
- No maintenance required for decades
- Tougher than paint or black oxide (capable of withstanding shipping and rough handling)
- 100% inspection possible (coating thickness easily measured)
Practical Limitations:
- Size limited by galvanizing kettle dimensions
- Cannot be field-applied like black oxide
- Gray/silver appearance only (no color options)
- Not suitable for precision parts due to coating thickness
- Parts must withstand high-temperature immersion
Cost Perspective:
Initial cost runs 1.5-2.5 times higher than black oxide, but with zero maintenance costs for 50+ years, galvanizing typically costs 1/4 as much as black oxide over the part’s lifetime. A galvanized steel beam might cost $1.50/sq ft more initially but saves $10-15/sq ft in maintenance over its life.

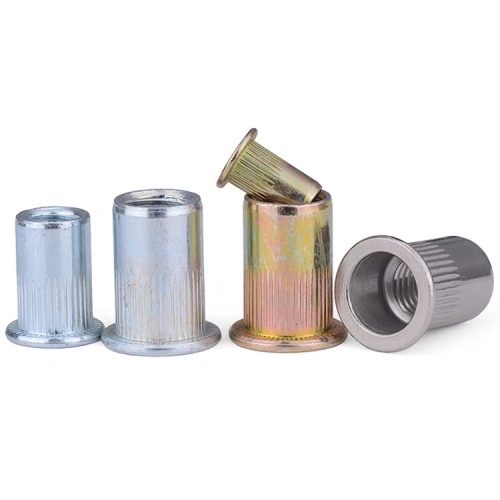

Zinc Plating with Chromate Conversion
While black oxide starts showing rust within months of outdoor exposure, zinc plating with chromate conversion provides 5-10 years of reliable protection. The dual-layer system (8-25 μm zinc + chromate layer) offers significantly better corrosion resistance with minimal dimensional change – perfect for threaded and precision components.
Unlike black oxide’s simple dipping process, zinc plating with chromate conversion uses a two-stage electrochemical approach:
- Zinc electroplating:
- Acid or alkaline bath electrodeposition
- Controlled thickness application
- Even coverage on complex shapes
- Chromate conversion:
- Quick chemical conversion of surface zinc
- Creates additional protective barrier
- Enhances corrosion resistance significantly
This dual-layer protection strategy delivers better results than single-layer treatments like black oxide.
Applications & Performance:
- Fasteners: 1,000+ hours salt spray resistance vs. 50 hours for black oxide
- Automotive Components: 5+ years under-hood durability
- Electronics Hardware: Maintains conductivity and appearance 3x longer than black oxide
- Industrial Equipment: Survives frequent washing and cleaning cycles
- Military Hardware: Meets MIL-spec requirements for corrosion resistance
Key Advantages:
- Excellent thread coverage without dimension changes
- Available in various colors for part identification
- Self-healing properties at minor scratches
- Compatible with most metal finishing lines
- Predictable, consistent results
Practical Limitations:
- Less impact-resistant than thicker coatings
- May show wear on high-friction surfaces
- Limited chemical resistance compared to anodizing
- Environmental regulations on chromate processes
- Not recommended for severe outdoor exposure
Cost Perspective:
Costs about 1.5 times more than black oxide initially, but typically lasts 5-8 times longer. For high-volume fasteners and small parts, automated plating lines can process thousands of parts per hour, making the cost-per-piece nearly competitive with black oxide while providing superior protection.
E-Coating (Electrophoretic Deposition): Complete Coverage for Complex Parts
Traditional surface treatments often struggle with complex geometries, leaving critical areas vulnerable. E-coating solves this challenge by providing uniform coverage on every surface, including deep recesses and internal cavities. The result? Years of reliable protection in severe environments where conventional treatments quickly deteriorate.
E-coating works like electroplating meets painting. After cleaning, parts are dipped in a paint bath where an electrical charge draws paint particles evenly onto every surface. A quick rinse removes excess paint, followed by heat curing to create the final protective coating. This simple yet effective process ensures complete coverage, even in hard-to-reach areas.
Applications & Performance:
- Automotive Frames: 10+ years corrosion protection in road salt exposure
- HVAC Components: 5,000+ hours salt spray resistance
- Agricultural Equipment: 8+ years outdoor performance
- Home Appliances: Maintains appearance through years of cleaning
- Industrial Enclosures: Protects both inside and outside surfaces
Key Advantages:
- 100% coverage in recessed areas and inside boxes
- Minimal waste (95%+ paint utilization)
- Consistent thickness even on complex parts
- Excellent edge coverage
- Automated process for high-volume
Practical Limitations:
- Requires conductive substrate
- High initial equipment investment
- Limited color change flexibility
- Parts must withstand cure temperature
- Difficult to touch up in the field
Cost Perspective:
While setup costs are significant, e-coating typically processes parts for just 1.2-1.5 times the cost of black oxide in high volume. A typical automotive component costs $0.50-1.00 more to e-coat versus black oxide but lasts the entire vehicle lifetime without requiring refinishing.
Niche Options for Specialized Applications
Beyond the five main alternatives to black oxide, two specialized treatments deserve mention for specific industrial needs:
Titanium Nitride (TiN) Coating For extreme wear resistance, TiN coating provides a gold-colored surface that outperforms standard treatments. Commonly seen on drill bits and cutting tools, this coating extends tool life by up to 300% compared to uncoated tools. While significantly more expensive than traditional treatments, its exceptional hardness and wear resistance make it ideal for high-precision cutting tools and medical instruments.
Passivation (Stainless Steel) Specifically for stainless steel, passivation isn’t just a coating – it’s a chemical process that enhances the material’s natural corrosion resistance. Perfect for medical devices and food processing equipment, this treatment creates an invisible but effective barrier against corrosion. The process is relatively inexpensive and maintains the metal’s original appearance while significantly improving its corrosion resistance.
Conclusion
For demanding industrial applications, hot-dip galvanizing and powder coating stand as proven champions for steel protection, while anodizing remains the go-to choice for aluminum parts. Zinc plating with chromate delivers reliable protection at a moderate price point, and e-coating masters protection for geometrically complex components. These alternatives eliminate the maintenance headaches of black oxide while delivering long-lasting, superior protection.
Frequently Asked Questions
No. Unlike black oxide, none of these five treatments can be effectively touched up in the field. Damaged areas require complete stripping and reapplication in a controlled facility environment for proper protection.
Powder coating offers the widest range of color options with thousands of available colors and finishes. Anodizing provides limited color options, while hot-dip galvanizing only comes in silver/gray, and zinc plating offers a few chromate color variations.
E-coating provides the best overall chemical resistance, particularly against industrial solvents, acids, and alkaline solutions. The uniform coating creates a complete barrier that resists most chemical exposures.
Anodizing and zinc plating are best for precision parts, as they create the thinnest coating layers (10-25 μm and 8-25 μm respectively). Powder coating and hot-dip galvanizing are too thick for tight tolerances.
Zinc plating with chromate conversion offers the best cost-performance ratio for high-volume parts, especially fasteners and small components. The automated process keeps costs low while providing 5-10 years of protection.
Hot-dip galvanizing provides the longest protection, lasting 50+ years in outdoor environments without maintenance. This significantly outlasts other treatments including powder coating (15-20 years) and e-coating (7-10 years).
